ESF6B Vibratory Hammer

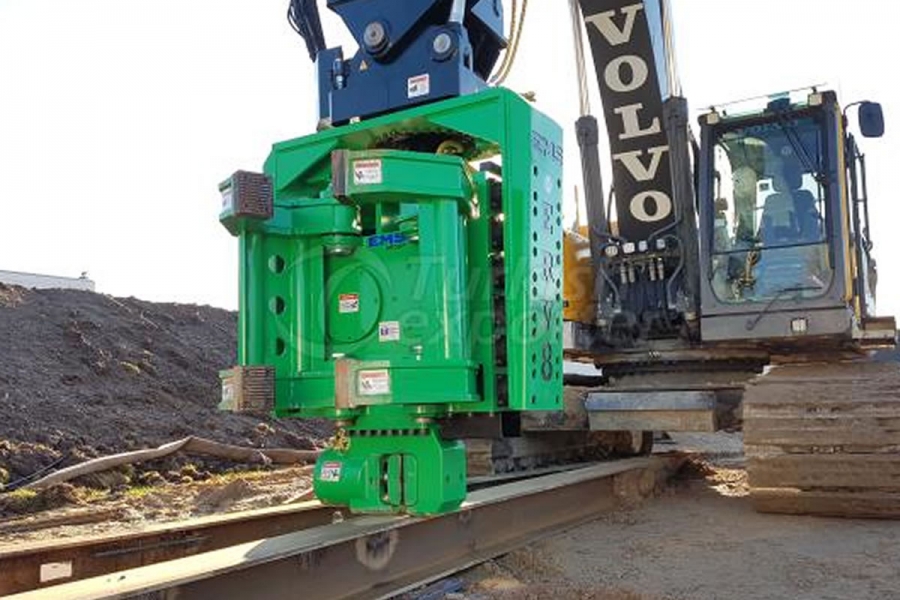

ESF 6B size vibratory hammer is attached to 25-30 tons class excavators. The size of vibratory hammer is efficient to drive sheet piles or steel tubes up to 7 meters in normal soil conditions.

Excavator Class	25-30 tons
Centrifugal Force	349 kN
Eccentric Moment	6 kgm
Speed	2300 rpm
Pulling Force	120 kN
Push Down	80 kN
Total Weight (incl. Clamp)	1210 kg
Dynamic Weight (incl. Clamp)	1000 kg
Amplitute	12 mm
Power	123 kW
Displacement	210 liter/min
Working Pressure	300 bar
Height	1631 mm
Width	621 mm
Length	928 mm
