ESF4B Mini Size Vibratory Hammer

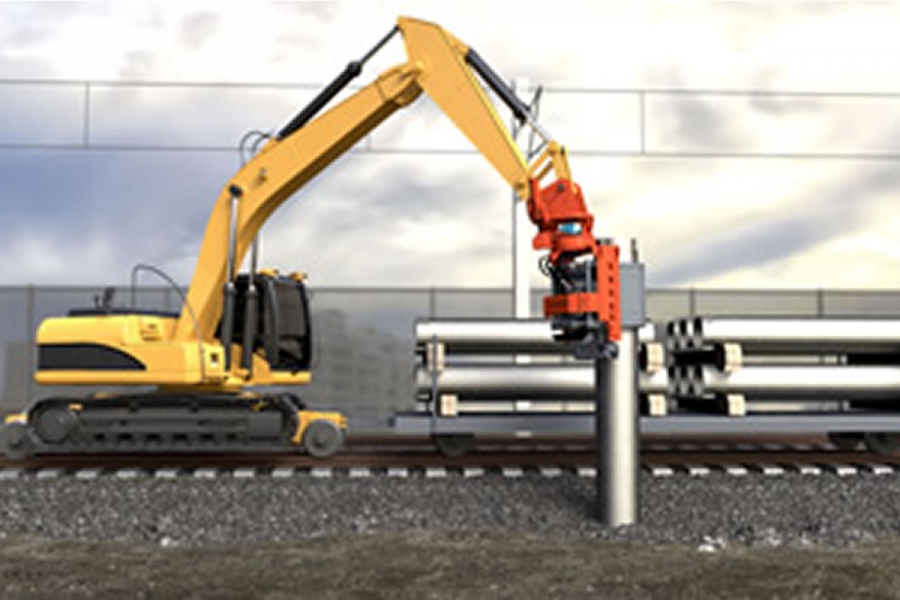

ESF4 model vibro hammer is attached to 18/20 tons class excavators. In normal soil conditions and if the material is low weight, it can drive posts and sheet piles up to 6 meters.

Excavator Class	15-20 tons
Centrifugal Force	449 kN
Eccentric Moment	4 kgm
Speed	3200 rpm
Pulling Force	60 kN
Push Down	40 kN
Total Weight (incl. Clamp)	650 kg
Dynamic Weight (incl. Clamp)	530 kg
Amplitute	15 mm
Power	60 kW
Displacement	110 liter/min
Working Pressure	320 bar
Height	1215 mm
Width	511 mm
Length	770 mm
